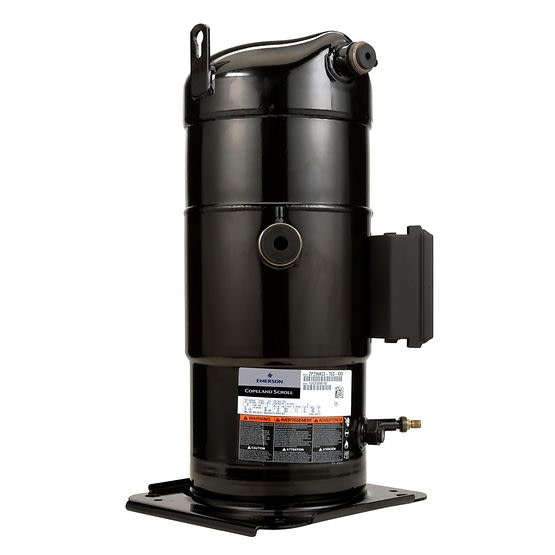

کمپرسور های کوپلند سری ZR برای سیتسم های تهویه و خنک کننده که باز مبرد های R22 و R134 و R407 استفاده می کنند طراحی شده اند.
در حال حاضر این مدل کمپرسور ها به دلیل برتری انکار ناپذیری که نسبت به سایر رقابت در این زمینه دارند جز پرکاربرد ترین محصولات در صنعت تهویه مطبوع می باشند که جایگزین مناسبی برای کمپرسور های سمی هرمتیک می باشند.
چندین شرکت اززیر مجموعه های شرکت کوپلند در تلاش هستند که با تکنولوژی های جدید این مدل کمپرسور های کوپلند را با سیستم چند منظوره (مولتی پل ) با هم کوپل نمایند که برای ظرفیت های بالا ( برای مثال چیلر های خنک کننده تا فشار 500 کیلو وات ) نیز مورد استفاده قرار بگیرند.
برای پشتیبانی از نیاز های جدید مشتریان شرکت EMERSON کمپرسور اسکرال برای مبرد R513A که مبرد کم فشاری است را طراحی کرده که محدوده فعالیت آن می تواند به دمای سوپر هیت 5K برسند که بهینه سازی عملکرد و هزینه بهتر سیستم را امکان پذیر می کند.
Features and Benefits
- Copeland Scroll axial and radial compliance for superior reliability and efficiency
- Wide scroll line-up for R407C, R134 and R513A
- Low TEWI (Total Equivalent Warming Impact)
- Low sound and vibration level
- Low oil circulation rate
- Copeland qualified tandem and trio configurations for superior seasonal efficiency (SEER)
- Maximum Allowable Pressure (PS)
- ZR24 to ZR81:
- Low side PS 21 bar(g) / High Side PS 29 bar(g)
- Low side PS 20 bar(g) / High Side PS 32 bar(g):ZR94 to ZR380
Technical Overview ZR*KRE
| Models | Length/
Width/ Height (mm) |
Net
Weight (kg) |
Motor Version/Code | Maximum
Operating Current (A) |
Locked Rotor Current (A) | Sound
Pressure @1 m (dBA) *** |
|||||||||||
| 1 Ph* | 3 Ph** | 1 Ph* | 3 Ph** | 1 Ph* | 3 Ph** | ||||||||||||
| ZR24KRE | 2.0 | 3.5 | 5.0 | 3.0 | 5.9 | 3/4 | 1/2 | 0.7 | 239/245/364 | 25 | PFJ | TFD | 13 | 5 | 58 | 26 | 54 |
| ZR28KRE | 2.5 | 4.2 | 5.9 | 2.9 | 6.8 | 3/4 | 1/2 | 1.1 | 239/245/364 | 27 | PFJ | TFD | 13 | 7 | 61 | 32 | 54 |
| ZR36KRE | 3.0 | 5.2 | 7.6 | 3.1 | 8.6 | 3/4 | 1/2 | 1.2 | 239/245/387 | 29 | PFJ | TFD | 16 | 7 | 82 | 40 | 55 |
| ZR42KRE | 3.5 | 6.2 | 8.9 | 3.2 | 10.0 | 3/4 | 1/2 | 1.1 | 239/245/400 | 28 | PFJ | TFD | 19 | 9 | 97 | 46 | 56 |
| ZR48KRE | 4.0 | 6.9 | 10.3 | 3.1 | 11.4 | 7/8 | 1/2 | 1.5 | 239/245/417 | 29 | TFD | 10 | 50 | 57 | |||
| ZR61KRE | 5.0 | 9.0 | 13.0 | 3.2 | 14.4 | 7/8 | 1/2 | 1.9 | 246/257/438 | 37 | TFD | 13 | 66 | 58 | |||
| ZR69KRE | 5.5 | 10.2 | 14.3 | 3.2 | 16.2 | 7/8 | 1/2 | 1.9 | 246/257/438 | 43 | PFJ | 36 | 150 | 59 | |||
| ZR72KRE | 6.0 | 10.6 | 15.4 | 3.4 | 17.1 | 7/8 | 1/2 | 1.9 | 246/257/438 | 40 | TFD | 13 | 74 | 61 | |||
| ZR81KRE | 6.5 | 11.6 | 16.6 | 3.2 | 18.8 | 7/8 | 3/4 | 1.8 | 246/257/443 | 39 | TFD | 14 | 101 | 61 | |||
| ZR92KRE | 8.0 | 13.5 | 18.8 | 3.2 | 21.4 | 7/8 | 3/4 | 1.9 | 246/257/443 | 40 | TFD | 16 | 102 | 65 | |||
| ZR108KRE | 9.0 | 15.8 | 23.0 | 3.2 | 25.0 | 1 3/8 | 7/8 | 3.3 | 281/285/533 | 60 | TFD | 18 | 111 | 63 | |||
| ZR125KRE | 10.0 | 18.4 | 27.0 | 3.3 | 29.1 | 1 3/8 | 7/8 | 3.3 | 264/285/533 | 61 | TFD | 20 | 118 | 63 | |||
| ZR144KRE | 12.0 | 20.8 | 30.9 | 3.2 | 33.2 | 1 3/8 | 7/8 | 3.3 | 281/285/533 | 61 | TFD | 22 | 118 | 64 | |||
| ZR160KRE | 13.0 | 22.9 | 33.4 | 3.1 | 36.4 | 1 3/8 | 7/8 | 3.4 | 281/285/552 | 65 | TFD | 28 | 140 | 68 | |||
| ZR190KRE | 15.0 | 27.4 | 39.3 | 3.1 | 43.3 | 1 3/8 | 7/8 | 3.4 | 281/285/552 | 66 | TFD | 35 | 174 | 71 | |||
Conditions EN12900 : Evaporating 5°C, Condensing 50°C, Superheat 10K, Subcooling 0K ** 3 Ph: 380-420V/ 50Hz
* 1 Ph: 230V/ 50Hz *** @ 1m: sound pressure level at 1m distance from the compressor, free field condition
Preliminary data
Technical Overview ZR*KCE
| Models | Length/
Width/ Height (mm) |
Net
Weight (kg) |
Motor Version/ Code | Maximum
Operating Current (A) |
Locked Rotor Current (A) | Sound
Pressure @1 m (dBA) *** |
|||||||
| 3 Ph** | 3 Ph** | 3 Ph** | |||||||||||
| ZR108KCE | 9.0 | 23.0 | 3.4 | 25.0 | 1 3/8 | 7/8 | 3.3 | 281/285/533 | 60 | TFD | 18 | 111 | 63 |
| ZR125KCE | 10.0 | 27.0 | 3.4 | 29.1 | 1 3/8 | 7/8 | 3.3 | 264/285/533 | 61 | TFD | 20 | 118 | 63 |
| ZR144KCE | 12.0 | 30.9 | 3.4 | 33.2 | 1 3/8 | 7/8 | 3.3 | 281/285/533 | 61 | TFD | 22 | 118 | 64 |
| ZR160KCE | 13.0 | 33.4 | 3.2 | 36.4 | 1 3/8 | 7/8 | 3.4 | 281/285/552 | 65 | TFD | 28 | 140 | 67 |
| ZR190KCE | 15.0 | 39.3 | 3.2 | 43.3 | 1 3/8 | 7/8 | 3.4 | 281/285/552 | 66 | TFD | 35 | 174 | 69 |
| ZR250KCE | 20.0 | 52.2 | 3.2 | 56.6 | 1 5/8 | 1 3/8 | 4.7 | 427/376/726 | 139 | TWD | 42 | 225 | 72 |
| ZR310KCE | 25.0 | 65.0 | 3.2 | 71.4 | 1 5/8 | 1 3/8 | 6.8 | 447/390/724 | 160 | TWD | 52 | 272 | 74 |
| ZR380KCE | 30.0 | 80.1 | 3.4 | 87.5 | 1 5/8 | 1 3/8 | 6.3 | 447/427/724 | 177 | TWD | 63 | 310 | 77 |
Conditions EN12900 : Evaporating 5°C, Condensing 50°C, Superheat 10K, Subcooling 0K *** @ 1m: sound pressure level at 1m distance from the compressor, free field condition
** 3 Ph: 380-420V/ 50Hz Models ZR22K3E-ZR48K3E, ZR61KSE and ZR61KCE-ZR81KCE are available as service compressors

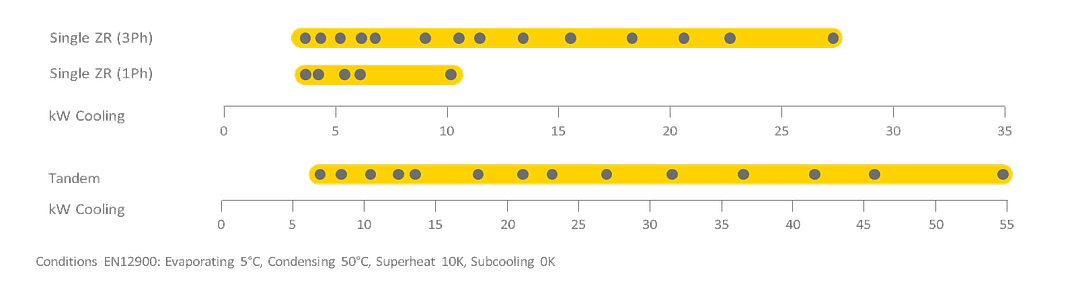

Capacity Data
| Condensing Temperature 50°C | |||||||||||||||
| R513A / R134a | Cooling Capacity (kW) | R513A / R134a | Power Input (kW) | ||||||||||||
| Evaporating Temperature (°C) | Evaporating Temperature (°C) | ||||||||||||||
| Model | -15 | -10 | -5 | 0 | +5 | +10 | +15 | Model | -15 | -10 | -5 | 0 | +5 | +10 | +15 |
| ZR24KRE | 1.3 | 1.7 | 2.2 | 2.8 | 3.5 | 4.4 | 5.3 | ZR24KRE | 1.3 | 1.3 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| ZR28KRE | 1.6 | 2.1 | 2.7 | 3.4 | 4.2 | 5.1 | 6.2 | ZR28KRE | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| ZR36KRE | 2.1 | 2.7 | 3.4 | 4.2 | 5.2 | 6.4 | 7.8 | ZR36KRE | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| ZR42KRE | 2.4 | 3.1 | 4.0 | 5.0 | 6.2 | 7.5 | 9.1 | ZR42KRE | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| ZR48KRE | 2.8 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 | 10.3 | ZR48KRE | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| ZR61KRE | 3.5 | 4.6 | 5.9 | 7.3 | 9.0 | 11.0 | 13.2 | ZR61KRE | 2.9 | 2.9 | 2.9 | 2.8 | 2.8 | 2.8 | 2.9 |
| ZR69KRE** | 4.0 | 5.2 | 6.6 | 8.2 | 10.2 | 12.4 | 14.9 | ZR69KRE** | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| ZR72KRE | 4.2 | 5.4 | 6.9 | 8.6 | 10.6 | 12.9 | 15.5 | ZR72KRE | 3.3 | 3.3 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| ZR81KRE | 4.8 | 6.1 | 7.6 | 9.4 | 11.6 | 14.2 | 17.1 | ZR81KRE | 3.8 | 3.8 | 3.8 | 3.7 | 3.7 | 3.7 | 3.7 |
| ZR92KRE | 5.7 | 7.1 | 8.9 | 11.0 | 13.5 | 16.4 | 19.8 | ZR92KRE | 3.8 | 3.9 | 4.0 | 4.1 | 4.2 | 4.4 | 4.5 |
| ZR108KCE | 8.1 | 10.3 | 12.8 | 15.7 | 19.1 | 23.0 | ZR108KCE | 4.6 | 4.6 | 4.7 | 4.7 | 4.7 | 4.7 | ||
| ZR125KCE | 9.1 | 11.8 | 14.8 | 18.3 | 22.3 | 26.9 | ZR125KCE | 5.3 | 5.4 | 5.4 | 5.4 | 5.5 | 5.5 | ||
| ZR144KCE | 11.2 | 14.3 | 17.5 | 21.0 | 24.8 | 29.0 | ZR144KCE | 6.1 | 6.3 | 6.3 | 6.3 | 6.3 | 6.4 | ||
| ZR160KCE | 11.1 | 14.5 | 18.3 | 22.7 | 27.8 | 33.6 | ZR160KCE | 6.8 | 6.9 | 6.9 | 7.0 | 7.0 | 7.2 | ||
| ZR190KCE | 13.6 | 17.5 | 22.0 | 27.2 | 33.1 | 40.1 | ZR190KCE | 8.5 | 8.5 | 8.6 | 8.6 | 8.6 | 8.7 | ||
| ZR250KCE | 18.4 | 23.2 | 28.9 | 35.5 | 43.3 | 52.2 | ZR250KCE | 10.9 | 10.9 | 11.0 | 11.1 | 11.2 | 11.4 | ||
| ZR310KCE | 22.3 | 28.3 | 35.2 | 43.3 | 52.8 | 63.7 | ZR310KCE | 13.3 | 13.5 | 13.6 | 13.7 | 13.9 | 14.1 | ||
| ZR380KCE | 29.2 | 36.6 | 45.3 | 55.4 | 67.0 | 80.5 | ZR380KCE | 16.3 | 16.6 | 16.8 | 17.1 | 17.3 | 17.6 | ||
Conditions: Suction Superheat 10K / Subcooling 0K
** Single Phase only
Preliminary data
| Condensing Temperature +50° | C | ||||||||||||||||
| R407C | Cooling Capacity (kW) | R407C | Power Input (kW) | ||||||||||||||
| Evaporating Temperature (°C) | Evaporating Temperature (°C) | ||||||||||||||||
| Model | -15 | -10 | -5 | 0 | +5 | +10 | +15 | Model | -15 | -10 | -5 | 0 | +5 | +10 | +15 | ||
| ZR24KRE | 2.6 | 3.3 | 4.1 | 5.0 | 6.1 | 7.3 | ZR24KRE | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 | ||||
| ZR28KRE | 3.0 | 3.8 | 4.8 | 5.9 | 7.2 | 8.6 | ZR28KRE | 2.0 | 2.0 | 2.0 | 2.0 | 1.9 | 1.9 | ||||
| ZR36KRE | 4.0 | 5.0 | 6.2 | 7.6 | 9.2 | 11.0 | ZR36KRE | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | ||||
| ZR42KRE | 4.6 | 5.9 | 7.3 | 8.9 | 10.8 | 12.8 | ZR42KRE | 2.9 | 2.9 | 2.8 | 2.8 | 2.8 | 2.8 | ||||
| ZR48KRE | 5.4 | 6.8 | 8.4 | 10.3 | 12.5 | 14.9 | ZR48KRE | 3.2 | 3.2 | 3.2 | 3.2 | 3.1 | 3.1 | ||||
| ZR61KRE | 7.1 | 8.8 | 10.8 | 13.0 | 15.6 | 18.7 | ZR61KRE | 4.0 | 4.0 | 4.0 | 4.1 | 4.1 | 4.1 | ||||
| ZR69KRE** | 7.8 | 9.6 | 11.8 | 14.3 | 17.3 | 20.6 | ZR69KRE** | 4.9 | 4.8 | 4.7 | 4.5 | 4.3 | 4.1 | ||||
| ZR72KRE | 8.0 | 10.1 | 12.5 | 15.4 | 18.6 | 22.2 | ZR72KRE | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | ||||
| ZR81KRE | 8.2 | 10.6 | 13.3 | 16.6 | 20.3 | 24.6 | ZR81KRE | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.4 | ||||
| ZR92KRE | 9.6 | 12.2 | 15.2 | 18.8 | 22.9 | 27.6 | ZR92KRE | 6.0 | 6.1 | 6.2 | 6.2 | 6.2 | 6.2 | ||||
| ZR94KCE | 10.3 | 13.4 | 16.8 | 20.6 | 24.9 | 29.7 | ZR94KCE | 6.3 | 6.3 | 6.3 | 6.3 | 6.2 | 6.2 | ||||
| ZR108KCE | 12.2 | 15.3 | 18.9 | 23.0 | 27.9 | 33.4 | ZR108KCE | 6.8 | 6.8 | 6.9 | 6.9 | 6.9 | 6.9 | ||||
| ZR125KCE | 14.0 | 17.7 | 22.0 | 27.0 | 32.6 | 39.1 | ZR125KCE | 8.0 | 8.0 | 8.0 | 8.1 | 8.1 | 8.1 | ||||
| ZR144KCE | 20.1 | 25.2 | 30.9 | 37.4 | 44.8 | ZR144KCE | 9.1 | 9.1 | 9.1 | 9.1 | 9.2 | ||||||
| ZR160KCE | 15.9 | 20.8 | 26.7 | 33.4 | 41.3 | 50.3 | ZR160KCE | 10.3 | 10.3 | 10.3 | 10.3 | 10.4 | 10.4 | ||||
| ZR190KCE | 19.8 | 25.5 | 31.9 | 39.3 | 47.7 | 57.3 | ZR190KCE | 12.2 | 12.3 | 12.3 | 12.3 | 12.4 | 12.5 | ||||
| ZR250KCE | 27.5 | 34.5 | 42.7 | 52.2 | 63.2 | 75.8 | ZR250KCE | 15.9 | 16.0 | 16.1 | 16.3 | 16.4 | 16.6 | ||||
| ZR310KCE | 33.5 | 42.4 | 52.8 | 65.0 | 79.1 | 95.4 | ZR310KCE | 20.0 | 20.0 | 20.0 | 20.2 | 20.4 | 20.6 | ||||
| ZR380KCE | 40.1 | 51.8 | 64.9 | 80.1 | 97.6 | 118.0 | ZR380KCE | 23.9 | 24.1 | 24.3 | 24.4 | 24.6 | 24.9 | ||||
Conditions: Suction Superheat 10K / Subcooling 0K

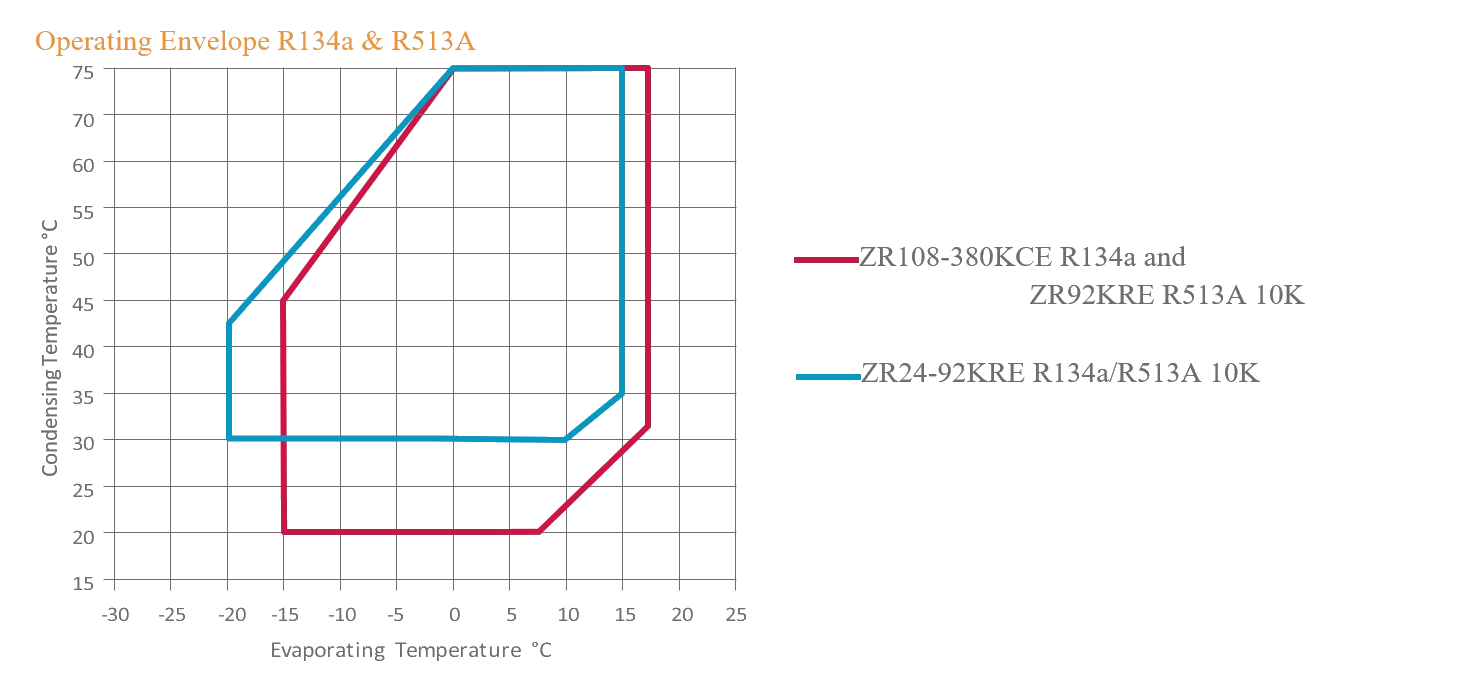

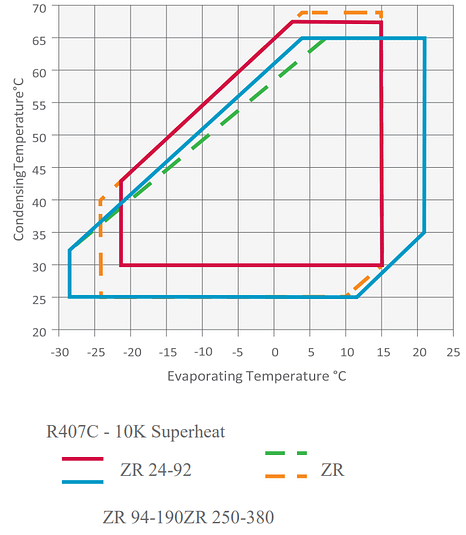

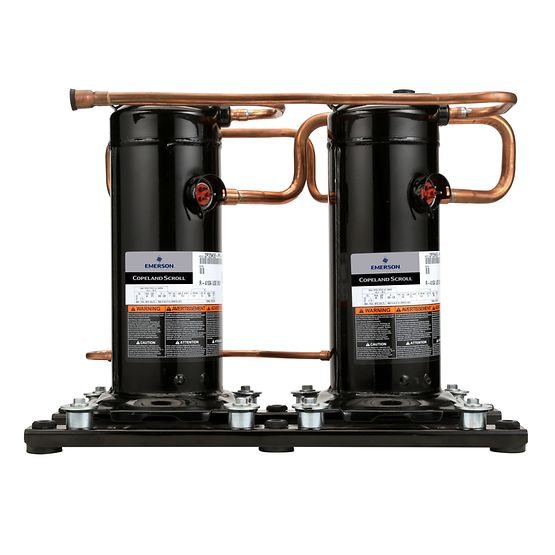

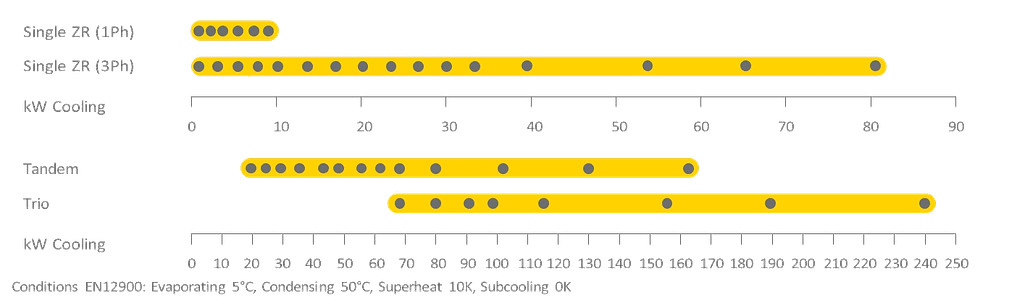

ZR*KRE Tandem* Model Overview
| Model | Tandem Assembly | Cooling Capacity (kW) | ||
| R407C | R513A | R134a | ||
| Even Tandem | ||||
| ZRT 48 KRE | 2 x ZR24 KRE | 10.0 | 7.0 | 7.2 |
| ZRT 56 KRE | 2 x ZR28 KRE | 11.8 | 8.4 | 8.3 |
| ZRT 72 KRE | 2 x ZR36 KRE | 15.2 | 10.4 | 10.5 |
| ZRT 84 KRE | 2 x ZR42 KRE | 17.7 | 12.4 | 12.1 |
| ZRT 96 KRE | 2 x ZR48KRE | 20.6 | 13.8 | 13.2 |
| ZRT 122 KRE | 2 x ZR61KRE | 26.0 | 18.0 | 17.5 |
| ZRT 144 KRE | 2 x ZR72KRE | 30.7 | 21.2 | 21.0 |
| ZRT 162 KRE | 2 x ZR81KRE | 33.1 | 23.2 | 23.6 |
| ZRT 184 KRE | 2 x ZR92KRE | 37.5 | 27.0 | 26.7 |
| ZRT 216 KRE | 2 x ZR108KRE | n/a | 31.6 | 31.3 |
| ZRT 250 KRE | 2 x ZR125KRE | n/a | 36.8 | 36.5 |
| ZRT 288 KRE | 2 x ZR144KRE | n/a | 41.6 | 42.0 |
| ZRT 320 KRE | 2 x ZR160KRE | n/a | 45.8 | 45.4 |
| ZRT 380 KRE | 2 x ZR190KRE | n/a | 54.8 | 54.3 |
Conditions EN 12900: Evaporating 5°C, Condensing 50°C, Superheat 10K, Subcooling 0K * Tandem Assemblies by System Manufacturers. Emerson can provide full technical support. Preliminary data
ZR*KCE Tandem Model Overview
| Model | Tandem Assembly | Cooling Ca | pacity (kW) | ||
| R407C | R134a | ||||
| Even Tandem | |||||
| ZRT 188 KCE | 2 x ZR94KCE | 41.2 | 26.9 | ||
| ZRT 216 KCE | 2 x ZR108KCE | 46.0 | 31.3 | ||
| ZRT 250 KCE | 2 x ZR125KCE | 54.0 | 36.5 | ||
| ZRT 288 KCE | 2 x ZR144KCE | 61.8 | 42.0 | ||
| ZRT 320 KCE | 2 x ZR160KCE | 66.8 | 45.4 | ||
| ZRT 380 KCE | 2 x ZR190KCE | 78.6 | 54.4 | ||
| ZRT 500 KCE* | 2 x ZR250KCE | 104.0 | 71.0 | ||
| ZRT 620 KCE* | 2 x ZR300KCE | 130.0 | 84.4 | ||
| ZRT 760 KCE* | 2 x ZR380KCE | 163.0 | 110.8 | ||
| Uneven Tandem | |||||
| ZRU 315 KCE* | ZR125KCE + ZR190KCE | 66.3 | 45.5 | ||
| ZRU 350 KCE* | ZR160KCE + ZR190KCE | 72.7 | 49.9 | ||
| ZRU 440 KCE* | ZR190KCE + ZR250KCE | 91.5 | 62.7 | ||
| ZRU 500 KCE* | ZR190KCE + ZR300KCE | 99.8 | 69.4 | ||
| ZRU 560 KCE* | ZR250KCE + ZR300KCE | 112.7 | 77.7 | ||
| ZRU 690 KCE* | ZR300KCE + ZR380KCE | 140.6 | 97.6 | ||
Conditions EN 12900: Evaporating 5°C, Condensing 50°C, Superheat 10K, Subcooling 0K * Tandem Assemblies by System Manufacturers. Emerson can provide full technical support.
